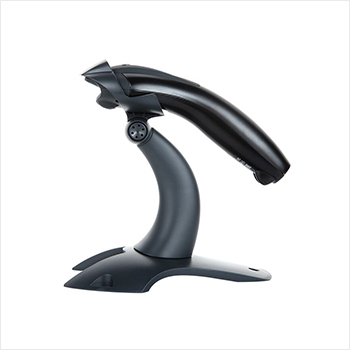

Voyager™ 1200g（有线）及 1202g（无线）激光条码扫描器基于单线激光扫描器平台构建。其可以扫描所有一维条码。其在读取质量不佳，甚至破损条码时表现良好。

物理参数

体积（长*宽*高） 1200g: 66 mm (3.0 in) X 180 mm (7.1 in) X 97 mm (3.8 in) 1202g 扫描器: 180 mm x 66 mm x 92 mm (7.1 in x 2.6 in x 3.6 in) 1202g 底座: 200 mm x 67 mm x 97 mm (7.9 in x 2.6 in x 3.8 in)

重量 1200g: 125 g (4.4 oz) 1202g 扫描器: 180 g (6.3 oz) (includes battery) 1202g 底座: 125 g (4.4 oz)

电学参数

Input Voltage1200g: 5 V +/- 5%

OPERATING POWER1200g: 700mW; 140 mA (typical) @ 5V 1202g Scanner: N/A 1202g Base:

5 W (1 A @ 5 V with power supply); 2.5W (0.5 A @ 5 V with USB)

0.625 W (0.125 A @ 5 V)

Standby Power1200g: 0.45 W (90mA @ 5 VDC) 1202g Scanner: N/A 1202g Base: N/A

Battery1200g: N/A 1202g Scanner: 1800 mAh Li-ion minimum 1202g Base: N/A

Expected Operation Time1202g: 12 hours

Expected Charge Time1202gi: 4. hours

Number of Scans1202g: Up to 45,000 scans per charge

Host System Interfaces1200g: Multi-Interface / Includes RS232 (TTL +5V, 4 Signals) / KBW / USB (HID Keyboard, Serial, IBM OEM); RS-232C (+/-12V) and IBM RS485 supported via adapter cable 1202g Scanner: N/A 1202g Base: USB, Keyboard Wedge, RS232, IBM 46xx (RS485)

BLUETOOTH1452g Radio/Range: 2.4 to 2.5 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth v2.1: Class 2: 10 m (33 ft) line of sight 1452g Radio/Range: Up to 3 Mbps
