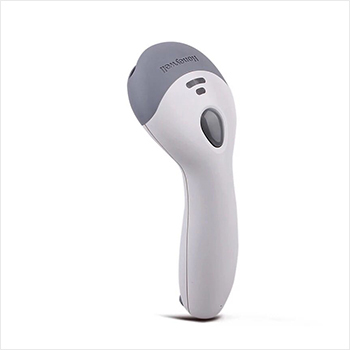

Voyager 9520 和 VoyagerCG 9540 手持式、单线激光扫描器具有自动红外激活，可解码所有标准一维条形码，包括 GS1 DataBar。

Specifications

MECHANICAL

Dimensions (LxWxH)198 mm x 78 mm x 56 mm (7.8 in x 3.1 in x 2.2 in)

Weight149 g (5.3 oz)

ELECTRICAL

Input Voltage5 VDC + 0.25 V

Operating Power600 mW (120 mA @ 5 V)

Standby Power0.45 W (90mA @ 5 VDC)

Host System InterfacesUSB, RS232, Keyboard Wedge, IBM 46xx (RS485), OCIA, Laser Emulation, Light Pen Wand Emulation

ENVIRONMENTAL

Operating Temperature0°C to 40°C (32°F to 104°F)

Storage Temperature-40°C to 60°C (-40°F to 140°F)

Humidity5% to 95% relative humidity, non-condensing

DropDesigned to withstand 1.5 m (5 ft) drops

Environmental SealingSealed to resist airborne particulate contaminants

Light Levels4842 Lux

SCAN PERFORMANCE

Scan PatternSingle scan line

Scan Speed72 scan lines per second

Scan AngleHorizontal: 50°

Symbol Contrast35% minimum reflectance difference

Pitch, Skew68°, 52°

Decode CapabilityReads standard 1D and GS1 DataBar symbologies

Warranty5 year factory warranty
