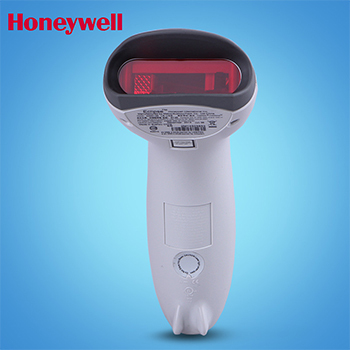

Eclipse™ 5145 是一款手持式单线激光扫描器，外形紧凑，适合零售应用。团队成员可轻松瞄准要扫描的条码，只需按一下按钮即可完成数据传输。

Specifications

MECHANICAL

Dimensions (LxWxH)169 mm x 63 mm x 51 mm (6.7 in x 2.5 in 2.0 in)

Weight100 g (3.5 oz)

ELECTRICAL

Input Voltage5 VDC + 0.25 V

Operating Power675 mW (125 mA @ 5 V)

Host System InterfacesUSB, RS232, Keyboard Wedge, IBM 468xx (RS485)

ENVIRONMENTAL

Operating Temperature0°C to 40°C (32°F to 104°F)

Storage Temperature-40°C to 60°C (-40°F to 140°F)

Humidity5% to 95% relative humidity, non-condensing

DropDesigned to withstand 1.5 m (5 ft) drops

Environmental SealingSealed to resist airborne particulate contaminants

Light Levels4842 Lux

SCAN PERFORMANCE

Scan PatternSingle scan line

Scan Speed72 scan lines per second

Scan AngleHorizontal: 50°

Symbol Contrast35% minimum reflectance difference

Pitch, Skew68°, 52°

Decode CapabilityReads standard 1D and GS1 DataBar symbologies

Warranty3 year factory warranty
