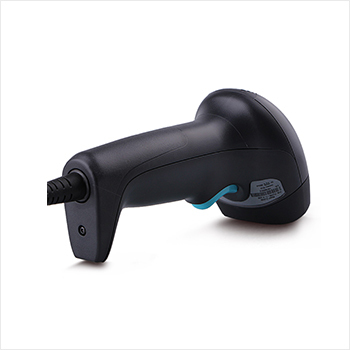

ZL2200 is a cost-effective single-line laser barcode scanner. As an entry-level bar code scanning device, the ZL2200 fully meets the needs of small and medium-sized scanning applications, such as retail cashiers in small supermarkets and convenience stores, automated office and document management, and the sending and receiving of mail and parcels. Equipped with the domestically-developed “Chongli” scanning and scanning platform, the ZL2200 has the superior performance of the international big-name handheld scanner, and at the same time has a very competitive price. It is the leader among similar domestic brands.

Physical parameter

Volume (length x width x height) 165mm x 65mm x 80mm

weight 182g

Electrical parameters

Input voltage 5 VDC ± 0.25 V

Power - typical 700mW (140mA@5V-standby) 1000mW (200mA@5V-decoding) Electromagnetic compatibility EN55022 Class B

Environmental parameters

Operating temperature 0°C - 40°C

storage temperature -40°C - 60°C

humidity 5%-95% relative humidity, non-condensing state

Illuminance 0 - 100,000LUX

Shock resistance Can withstand 1 meter of air fall

Dustproof Sealed to withstand air dust intrusion

Performance parameter

light source Visible laser diode laser, wavelength 650 nm ± 10 nm

Indicator light Red = laser is on, ready to scan; green = decoding is successful System interface USB

Scan type Single line

Scanning speed 100 scan lines per second

Scanning angle Level 55°

Recognizable print contrast Minimum 20% reflection difference

Elevation a,ngle 68°, 52°

Decoding ability All standard 1D barcodes
