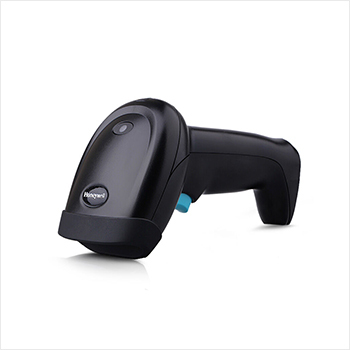

HH360 is a one-dimensional image scanner that combines high performance, high durability and ergonomic design. It has a very good adaptability to the traditional scanning bar code and screen bar code switching scanning requirements in popular O2O applications. ability. At the same time, in the scanning intensity or light industrial application environment, HH360 can also complete the scanning task efficiently.

Physical/electrical parameters

size (length × width × height): 98mm × 126mm × 155mm

weight 140g

Input voltage 5 ± 0.5VDC

工作功率 500mW, 110mA （typ）@5VDC

待机功率 300mW, 60mA （typ）@5VDC

接口 USB, RS232, KBW

Environmental parameters

Operating temperature 0 °C ~ 50°C

storage temperature -40 °C ~ 60°C

temperature 95%

Anti-fall strength Random 1- 1.5m

Industrial grade IP40

Ambient brightness 0 to 100,000 Lux (daylight)

performance parameter

scanning method Single line

light source 2617nm high brightness LEDs

Scan rate 350 times / sec

Recognizable print contrast 20%

Elevation angle 65°、75°

Minimum recognition accuracy 3 mil

Decoding ability Identify standard 1D and GS1 DataBarTM characters
