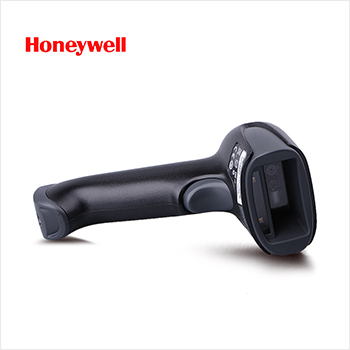

XenonTM 1900 Series redefines the standard for handheld scanners with the 6th generation AdaptusTM area imaging technology. The Xenon family of custom scanners optimize bar code scanning to deliver industry-leading performance and reliability for a wide range of data acquisition applications.

Specifications

Physical parameter

Size (length x width x height)1900/1900C - 1902/1902C scanner: 104 mm x 71 mm x 160 mm 1902/1902C hoster : 132 mm x 102 mm x 81 mm

weight 1900/1900C: 147 g (5.2 oz) 1902/1902C scanner : 214 g (7.5 oz) 1902/1902C hoster : 179 g (6.3 oz)

Electrical parameters

Input voltage1900/1900C : 4 VDC 到 5.5 VDC Operating power1900/1900C : 2.3 W (450mA @ 5 VDC) 1902/1902C scnaner : N/A 1902/1902C hoster :

 charging 5 W (1A @ 5 V)

 none charging 0.5 W (0.1A @ 5 V)

standby power 1900/1900C : 0.45 W (90mA @ 5 VDC)

battery 1902/1902C: 1800mAh  lithium battery (min)

Estimated working time1902/1902Ci: 14hours

Estimated charging time1902/1902C: 4.5 hours

Number of scans1902/1902C: 50,000 scans / per charge

System interface1900/1900C : USB, (keyboard port ), RS232, IBM 46xx (RS485) 1902/1902C scanner : N/A 1902/1902C holster : USB, (keyboard port), RS232, IBM 46xx (RS485)

bluetooth 1902/1902C Wireless band/communication distance:

2.4 to 2.5 GHz (ISM band) adaptive frequency hopping technology (AFH) Bluetooth v2.1; Class 2: 10 m visible distance communication1902/1902C Data rate (transmission rate): Up to 1 Mbit/s

Environmental parameters

Operating temperature1900/1900C : 0°C to 50°C (32°F to 122°F) 1902/1902C scanner： 0°C to 50°C (0°F to 50°F) 1902/1902C stander :

充电 5°C to 40°C (41°F to 104°F)   Charging 5°C to 40°C (41°F to 104°F)

非充电 0°C to 50°C (32°F to 122°F)   Non-charged 0°C to 50°C (32°F to 122°F)

storage temperature

-40°C to +70°C (-40°F to +158°F)

humidity

0 to 95% relative humidity, non-condensing

fall tesing 1900 : Can withstand 50 times 1.8 m Height dropped to the concrete floor Ratchet bracket: With the bracket can withstand 50 times 1.2 m Drop to the concrete floor1900C : Can withstand 50 times 1.8 m height dropped to the concrete floor

1902/1902C Scanner: Can withstand 50 times 1.8 m Height dropped

1902/1902C stand : Can withstand 50 times 1 m Height dropped to concrete floor

Environmental seal ratingIP41

Illuminance

0 to 100,000 lux (9,290 candelabra)

Ratchet cycle number1900: The ratchet can withstand 10,000 toggles (each movement is a full movement of the ratchet from top to bottom) to keep the scanner fixed at any angle to the ratchet

Scanning performance

Scan modeImage scanning (838 x 640 pixels)

Anti-jitterScan the 13 mil UPC barcode at the best focus to 610 cm/sec (240 in/sec)

Scanning angleHigh density HD: horizontal 41.4°; vertical: 32.2°Standard distance SR: level: 42.4°; vertical: 33°1900/1902: Long distance ER: level l: 31.6°; vertical: 24.4°

Recognizable reflection contrastMinimum 20% reflection difference

Slope, skewness45°, 65°

Decoding abilityRead standard 1D, stack, 2D barcodes and postal codes as well as specific OCR characters
