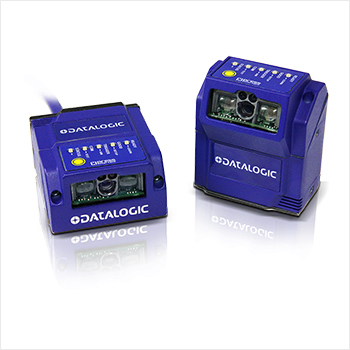

The Matrix210 is a new 2D barcode reader from DATALOGIC that offers excellent reading performance

ultra-small size and is very easy to use. With innovative optical features, advanced software features, USB and a complete serial communication interface, the Matrix210 is the best compact industrial image reader for applications with small installation space. (Matrix210 is an upgraded version of the Matrix200, which is more powerful, higher performance, and is available with an Ethernet interface model)

· Matrix-210 barcode reading product is a true industrial grade Datalogic barcode scanner

· Omnidirectional reading of all 1D and 2D barcodes based on high-speed array CCD image technology

· Integrated auxiliary illumination, image acquisition, image refinement · Barcode automatic learning function, no need for computer, one button quick setting

· Barcode Quality Control (AIM Standard)

· Highly integrated decoding software and communication interface

· Scanning speed of up to 60 frames / sec, object bar code movement speed can exceed 5 m / s

· Available in four models with different scan resolutions

typical application:

·Small size work in process control

·Printed circuit board production process tracking

·Semiconductor manufacturing

·Document and letter processing

·Biochemical analysis equipment

·Small size product or pharmaceutical packaging equipment

Parameter characteristics

MATRIX 210 21X-1XX MATRIX 210 21X-0XX

size：50*25*45mm 54*32*45mm

Power 3.6W maximum; 3.0W typical 2.5W maximum; 2.0W typical

Weight: 60g (without cable)

storage temp： -20～70℃

Voltage: 10 to 30 VDC 5VDC

working temp： 0～50℃（32-122F）

Humidity: 90% without condensation

Protection level: IP65

Interface: series, master / slave, multiplexer, USB point to point Communication method RS232 + RS232/RS422/RS485 up to 115.2 Kbit/s ID-NET port speed up to 1 Mbps USB 2.0 speed up to 921.6Kbit/s

Programming method: X-PRESS external button, Windows-based software, via serial port or Ethernet

Decoding: 1D and Stacking Code: IL 2/5, Code 128, Code 39, EAN/UPC, PDF417, Micro PDF417, Pharmacode, GS1 DATABAR (RSS) family, and more

2D：Data Matrix, QR Code, Maxicode, Aztec, Microglyph

Postal Code： Royal Mail, Japan Post, Planet, Postnet, etc

Decoding performance: High resolution optical sensor can read 3 mil (0.076mm) ultra tight 2D barcode

Features / advantages

·Matrix-210 barcode reading product is a true industrial grade Datalogic barcode scanner

·Omnidirectional reading of all 1D and 2D barcodes based on high-speed array CCD image technology

·Integrated auxiliary illumination, image acquisition, image refinement

·Barcode automatic learning function, no need for computer, one button quick setting

·Barcode Quality Control (AIM Standard)

·Highly integrated decoding software and communication interface

·Scanning speed of up to 60 frames / sec, object bar code movement speed can exceed 5 m / s

·Available in four models with different scan resolutions
